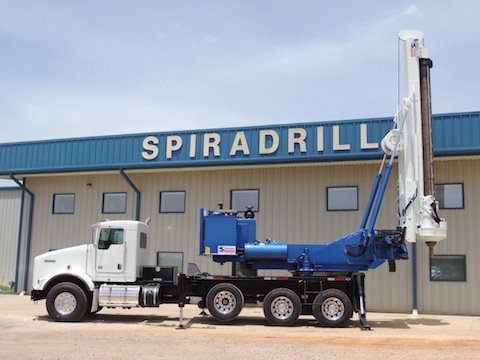

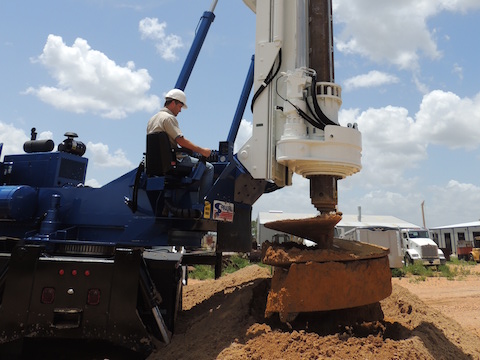

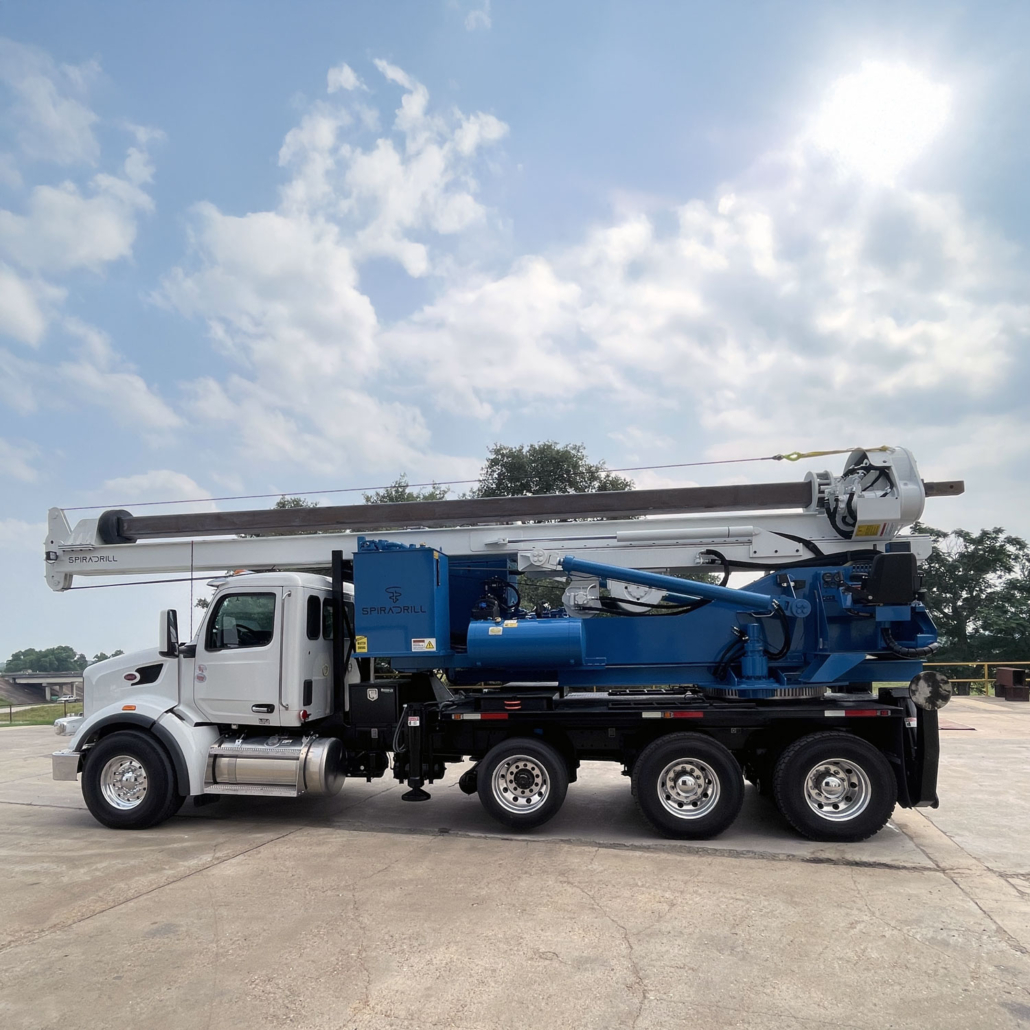

The MHD-XL is Spiradrill’s most powerful drilling rig — built for high-torque, deep foundation work where performance and control are non-negotiable. With up to 90,000 lbs. of rotary torque and drilling depths up to 120 feet, this rig delivers unmatched power for demanding infrastructure, energy, and foundation projects.
MAX PILE DEPTH:
MAX PILE DIAMETER:
ROTARY TORQUE:
If your project demands extreme depth, high torque, and maximum reliability, the MHD-XL delivers — with industry-leading specs and Spiradrill’s proven build quality.
Check out our product filter to explore options by drill depth, diameter, RPM, and more — and find the rig that’s right for your next job.
Exact specs vary by configuration. Contact us to discuss your specific needs.
| Spec | Details |
|---|---|
| Rotary Torque | 90,000 lbs |
| Max Pile Depth | 50′ – 120′ |
| Max Pile Diameter | 12′ |
| Max RPM (Low) | 9 RPM |
| Max RPM (Mid) | 22 RPM |
| Spin Off Speed | 100 RPM |
| Crowd | 62,832 lbs |
| Main Winch | 23,000 lbs |
| Aux Winch | 12,000 lbs |
| Fuel Tank | 70 gallons |
| Engine | JOHN DEERE 6068 225 HP |
| Drill Depth | Working Height | Kelly Bar Round | Kelly Bar Square | # of Stages |
|---|---|---|---|---|
| 50′ | 30′ | X | 3 | |
| 70′ | 30′ | X | X | 4 |
| 90′ | 39′ 6″ | X | X | 4 |
| 120′ | 47′ 6″ | X | X | 4 |
All MHD-XL rigs can be outfitted with:
Kelly Bars power your drill’s torque and depth. Round Kelly Bars use a manual locking system and perform best in hard or rocky ground. Square Kelly Bars feature a friction lock and are ideal for softer soils, offering quicker alignment and greater flexibility.
Spiradrill rigs support both, so you can match your bar to the job.
When you invest in an MHD-XL, you’re not just getting a rig — you’re getting a long-term partner. Our Parts & Service Promise means we’re committed to keeping you up and running with responsive support, dependable inventory, and real people who know your equipment inside and out.
We build our rigs to last — and we stand behind them every step of the way.
The MHD-XL is ideal for deep, high-torque drilling jobs in utility, infrastructure, and heavy construction. Whether you’re drilling conductor casing or supporting a bridge foundation, this rig is ready.
Perfect for bridges, overpasses, and commercial buildings, the MHD-XL is engineered for deep foundation work in tough ground conditions where maximum torque and depth are critical.
In energy and oilfield applications, the MHD-XL excels at drilling precision conductor casings and rat holes — even in remote or demanding environments.
Whether it’s large-diameter utility poles or structural support for major civil infrastructure, the MHD-DXL provides the power, reach, and reliability needed on high-impact jobsites.
Let’s build the MHD-XL that fits your toughest jobs. Connect with our team today and see why contractors trust the MHD-XL for high-torque, deep foundation drilling in demanding conditions.
