The LHD-XL takes everything crews love about the LHD and levels it up with more torque, greater depth capacity, and increased working power. With a max drill depth of 80 feet, 45,000 lbs of rotary torque, and a compact footprint, the LHD-XL delivers serious performance without requiring transport permits. It’s a go-to rig for utility and foundation jobs that demand more — especially in tight or overhead-restricted spaces.
MAX PILE DEPTH:
MAX PILE DIAMETER:
ROTARY TORQUE:
If you need more depth and torque without moving to a larger footprint, the LHD-XL is your solution. It’s engineered for efficiency, reliability, and jobsite agility.
Check out our product filter to explore options by drill depth, diameter, RPM, and more — and find the rig that’s right for your next job.
Exact specs vary by configuration. Contact us to discuss your specific needs.
| Spec | Details |
|---|---|
| Rotary Torque | 45,000 lbs |
| Max Pile Depth | 35′ – 80′ |
| Max Pile Diameter | 6′ |
| Max RPM (Low) | 22 RPM |
| Max RPM (Mid) | 56 RPM |
| Spin Off Speed | 140 RPM |
| Crowd | 24,000 lbs |
| Main Winch | 12,000 lbs |
| Aux Winch | 8,000 lbs |
| Fuel Tank | 50 gallons |
| Engine | JOHN DEERE 4045 173 HP |

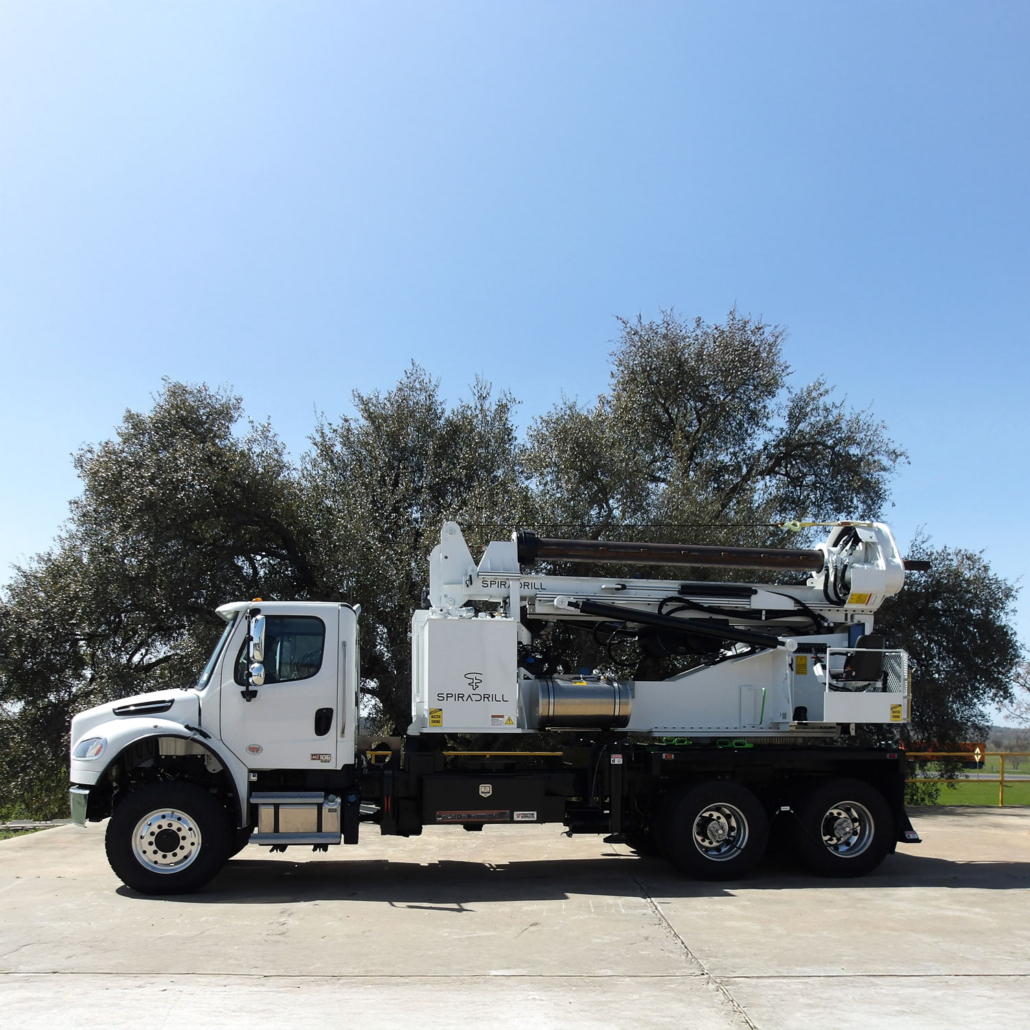

Click to enlarge.

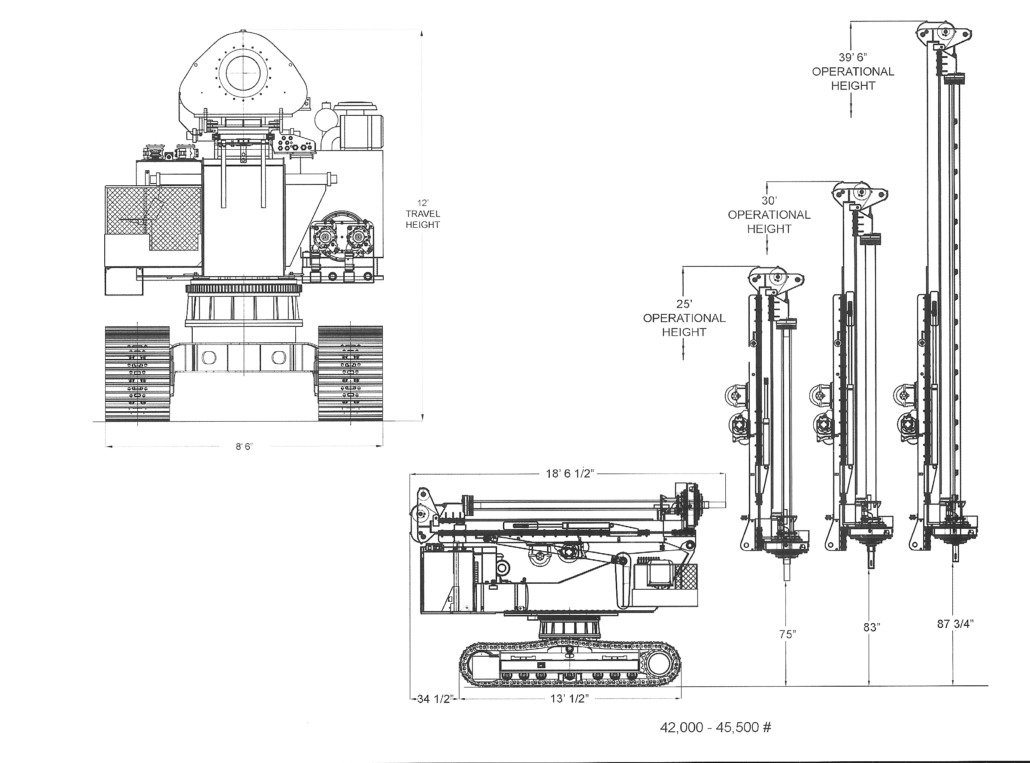

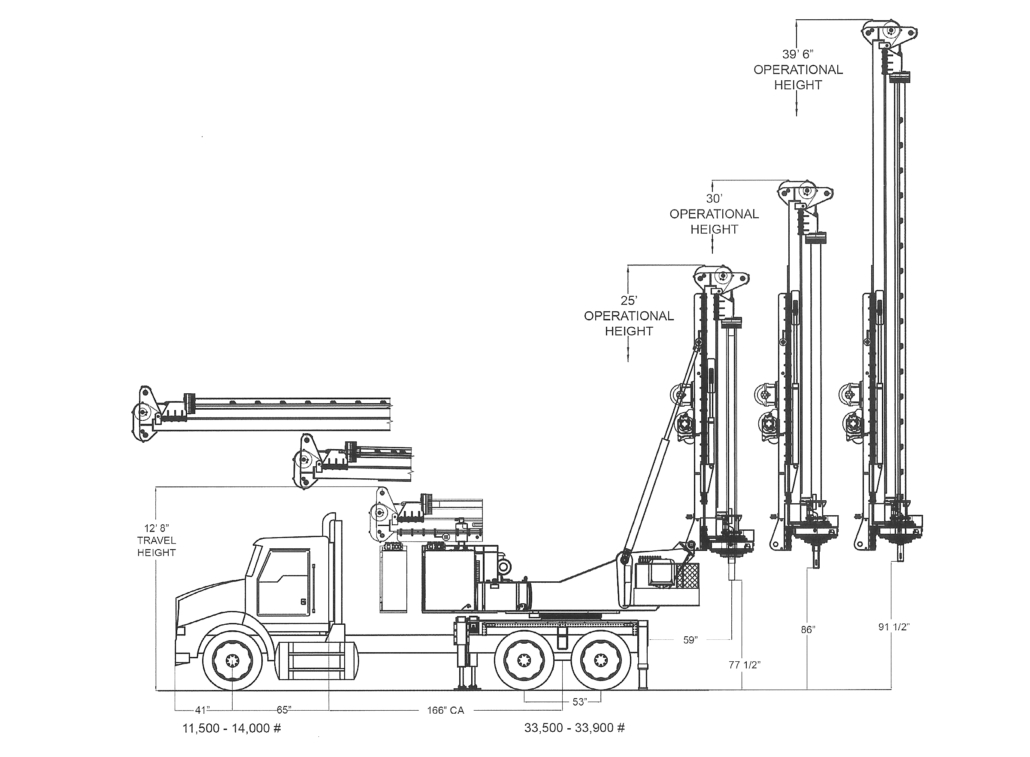

| Drill Depth | Working Height | Kelly Bar Round | Kelly Bar Square | # of Stages |
|---|---|---|---|---|
| 35′ | 25′ | X | 3 | |
| 50′ | 25′ | X | 3 | |
| 50′ | 30′ | X | 3 | |
| 70′ | 36′ | X | 3 | |
| 80′ | 36′ | X | 4 |
All LHD-XL rigs can be outfitted with:
Kelly Bars power your drill’s torque and depth. Round Kelly Bars use a manual locking system and perform best in hard or rocky ground. Square Kelly Bars feature a friction lock and are ideal for softer soils, offering quicker alignment and greater flexibility.
Spiradrill rigs support both, so you can match your bar to the job.
When you invest in an LHD, you’re not just getting a rig — you’re getting a long-term partner. Our Parts & Service Promise means we’re committed to keeping you up and running with responsive support, dependable inventory, and real people who know your equipment inside and out.
We build our rigs to last — and we stand behind them every step of the way.
The LHD-XL is a compact but powerful hydraulic drilling rig engineered for deeper utility and foundation drilling. With its extended torque, depth range, and low working height, it’s a versatile solution for contractors working in tight or high-demand environments.
Built for performance, the LHD-XL is perfect for foundation drilling jobs that require moderate depth and power — from commercial footings to street signage and light structural foundations.

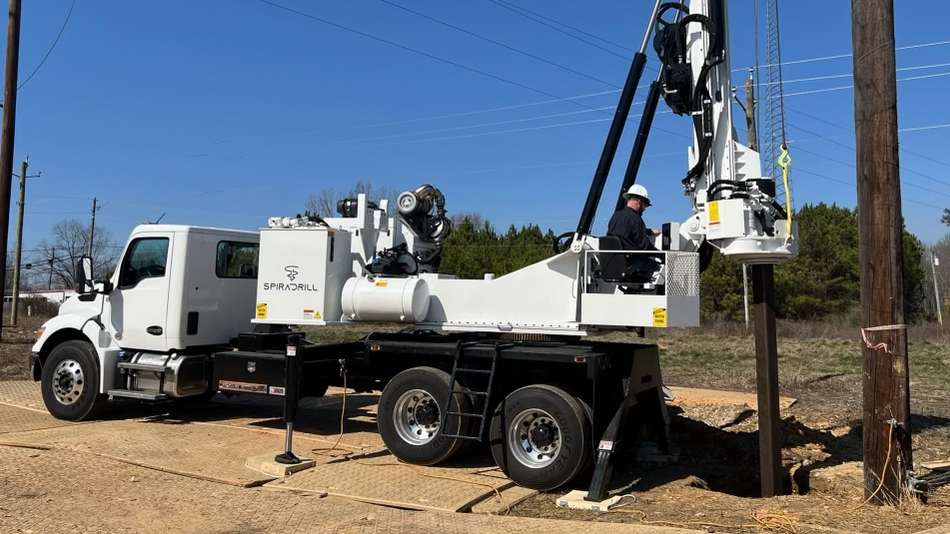

The LHD-XL is ideal for utility pole installation where traditional drilling rigs can’t operate. Its compact design and extended reach make it a top choice for utility drilling near structures, fences, and overhead power lines.
With a low working height and road-legal transportability, the LHD-XL excels in urban and overhead-restricted job sites. It’s an efficient drilling rig for areas under bridges, utility lines, and in compact metro zones.
Let’s build the LHD-XL that fits your toughest jobs. Connect with our team today and discover why contractors choose the LHD-XL for deeper utility drilling and compact foundation work — all without sacrificing mobility.
