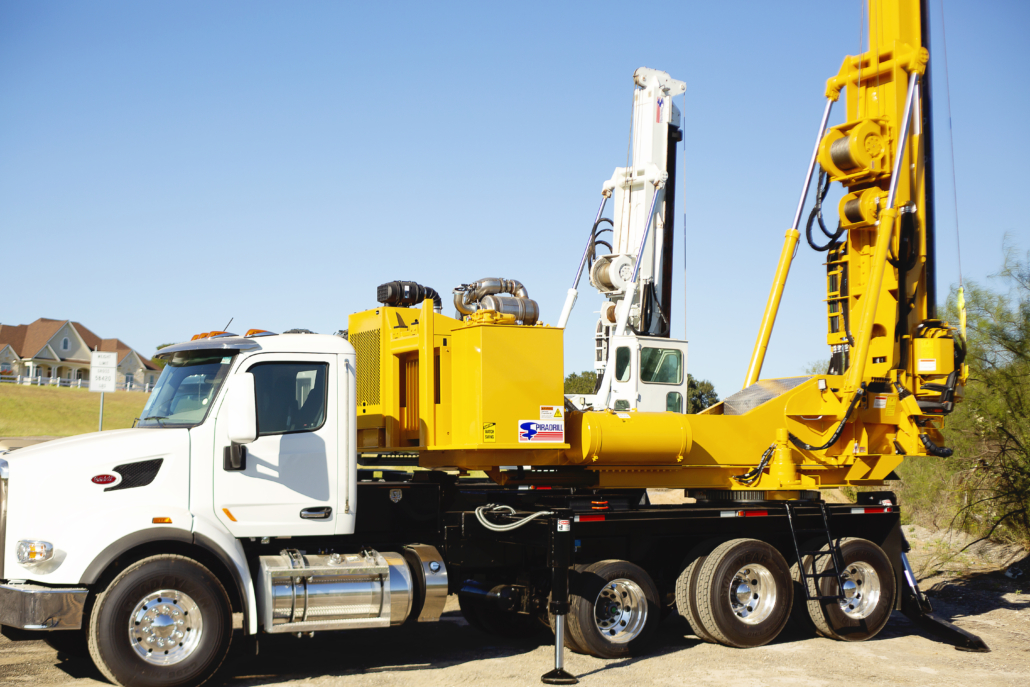

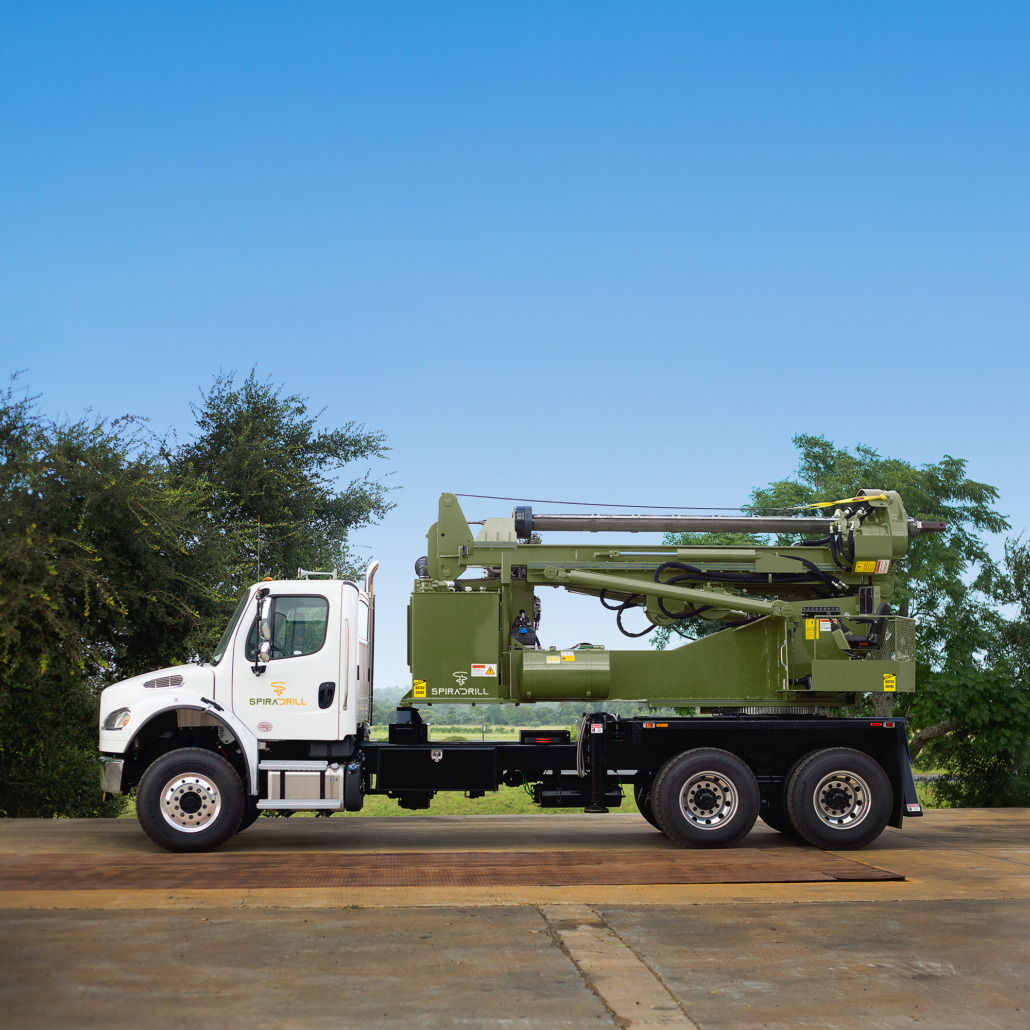

The LHD is Spiradrill’s most popular and versatile rig — purpose-built for utility and light foundation drilling. Designed to be road-legal without transport permits, it delivers high performance in a smaller footprint, making it ideal for tight spaces, low-clearance jobs, and quick site setups.
MAX PILE DEPTH:
MAX PILE DIAMETER:
ROTARY TORQUE:
The LHD is engineered for jobs that require speed, precision, and flexibility in tight spaces. Its compact size, low working height, and quick setup make it ideal for utility crews working around overhead lines or in congested job sites.
Check out our product filter to explore options by drill depth, diameter, RPM, and more — and find the rig that’s right for your next job.
Exact specs vary by configuration. Contact us to discuss your specific needs.
| Spec | Details |
|---|---|
| Rotary Torque | 40,000 lbs |
| Max Pile Depth | 22′ – 70′ |
| Max Pile Diameter | 6′ |
| Max RPM (Low) | 22 RPM |
| Max RPM (Mid) | 56 RPM |
| Spin Off Speed | 140 RPM |
| Crowd | 24,000 lbs |
| Main Winch | 12,000 lbs |
| Aux Winch | 8,000 lbs |
| Fuel Tank | 50 gallons |
| Engine | JOHN DEERE 4045 173 HP |
Click to enlarge.
| Drill Depth | Working Height | Kelly Bar Round | Kelly Bar Square | # of Stages |
|---|---|---|---|---|
| 22′ | 25′ | X | 2 | |
| 35′ | 25′ | X | 3 | |
| 50′ | 30′ | X | 3 | |
| 50′ | 39′ 6″ | X | 2 | |
| 50′ | 39′ 6″ | X | 2 | |
| 70′ | 39′ 6″ | X | 3 |
All LHD rigs can be outfitted with:
Kelly Bars power your drill’s torque and depth. Round Kelly Bars use a manual locking system and perform best in hard or rocky ground. Square Kelly Bars feature a friction lock and are ideal for softer soils, offering quicker alignment and greater flexibility.
Spiradrill rigs support both, so you can match your bar to the job.
When you invest in an LHD, you’re not just getting a rig — you’re getting a long-term partner. Our Parts & Service Promise means we’re committed to keeping you up and running with responsive support, dependable inventory, and real people who know your equipment inside and out.
We build our rigs to last — and we stand behind them every step of the way.
Designed for mobility and fast setup, this light hydraulic drill excels on jobsites where space is limited and speed is essential — reducing downtime and increasing daily productivity.
The LHD is a top choice for utility contractors needing a compact, reliable drilling rig to set poles in substations and energy distribution sites. Its low working height and easy maneuverability make it ideal for drilling under power lines or in restricted spaces.
Whether you’re working on DOT projects or municipal infrastructure, the LHD delivers efficient, repeatable drilling for light pole and signage foundations — especially where space is limited or access is tight.
The LHD handles shallow to mid-depth foundation drilling with precision, making it ideal for site prep, retaining walls, and groundwater management systems on smaller-scale construction projects.
Let’s build the LHD that fits your job. Connect with our team today and see why the LHD is the utility industry’s most trusted compact rig.
